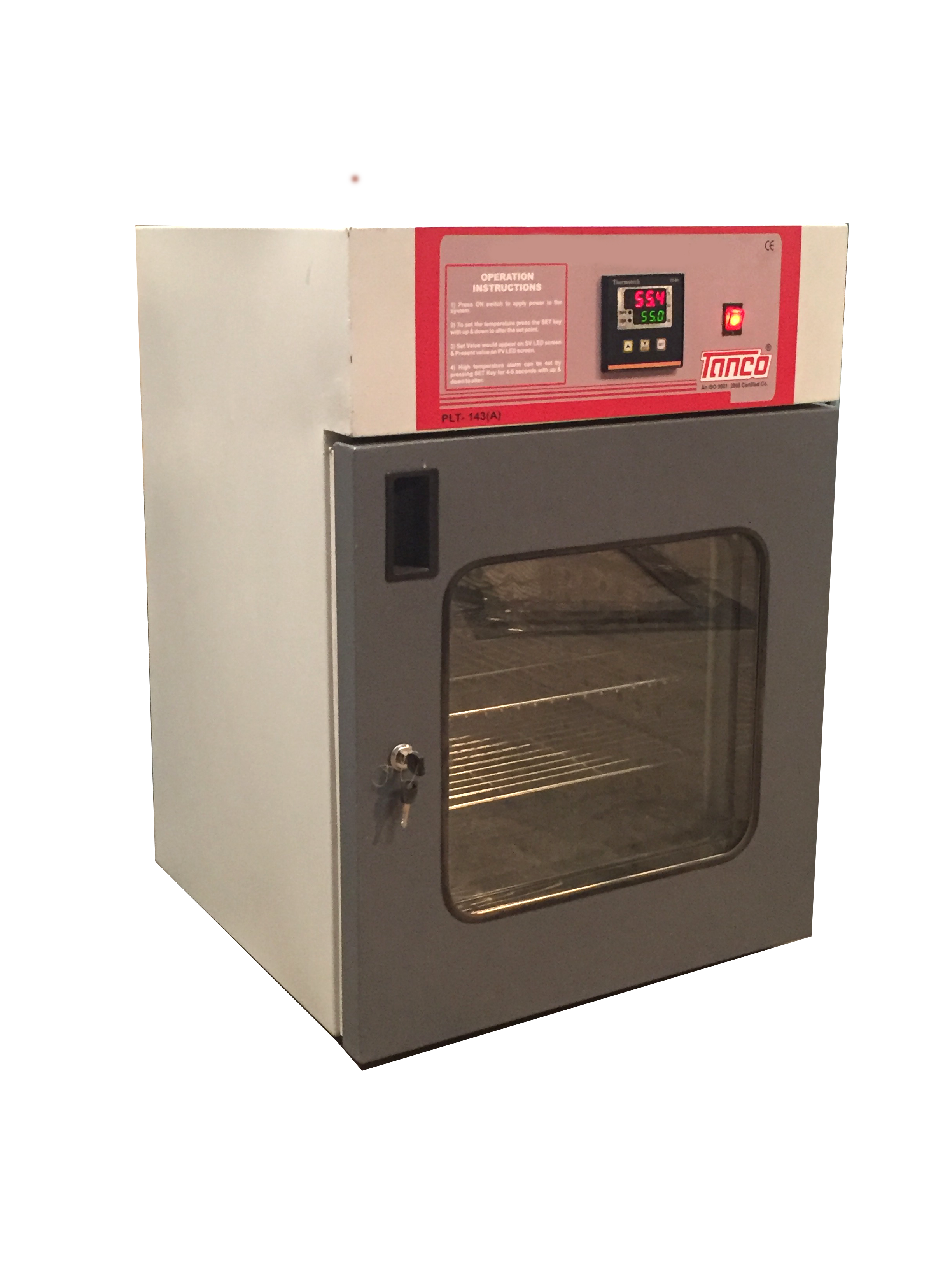

Frozen /Semen Storage Cabinet (PLT-143)

APPLICATIONS OF SEMEN STORAGE CABINET

"TANCO" brings the ultra-high-tech Triple walled Microprocessor controlled, solid-state Frozen/Semen Storage Cabinet.
Specially designed for storing the semen storage bottles/containers in an automatically controlled temperature of 3^°C to 4^°C for small medium and large blood centers
Suitable for hospitals anti-epidemic stations and clinics.

SALIENT FEATURES & CONSTRUCTION OF SEMEN STORAGE CABINET

Robust construction Outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
Temperature is controlled by Electronic Digital Temperature Indicator Cum Controller fitted With Audio Visual Alarm incorporated with battery back which triggers in the event of fluctuation exceeding permitted tolerance.
Drawers are provided for accommodating Semen bottles or Containers.
Caster wheel mounted for easy portability.
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF SEMEN STORAGE CABINET

Model No.	SSC-6
Size in MM	845 x 500 x 400
Approx Volume (Ltr)	173
Size	6 cu.ft.
Chamber	Inner Chamber Made of Stainless Steel
Temperature	3^°C to 4Isup C
Temp. Controller	By Microprocessor Based PID Digital Temperature Indicator cum Controller with alarm facility
Temperature Alarm	For High & Low Temperature Deviation
Display:	LED Display
Relay	Solid state electronic relay with protective heat sink.
Battery Backup	Facility is provided
Illumination	By Fluorescent Tube
Air Circulation	By forced convection system
Insulation	By High density PUF insulation
Operations	Nearly silent operation with ultra-low vibration
High Voltage Protection	Through automatic voltage stabilizer (Optional)
Electric Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF SEMEN STORAGE CABINET

Printing Facility	By Built in Mini Printer to record temperature.
Temperature Recorder	By Weekly temperature recorder
Regulated Voltage	By Voltage stabilizer
