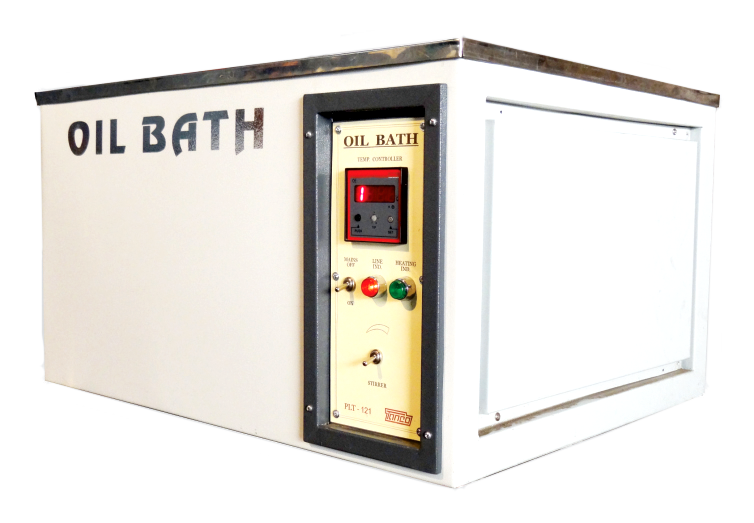

High Temperature Oil Bath (PLT-121)

APPLICATIONS OF HIGH TEMPERATURE OIL BATH

Double Walled High Temperature Oil Bath having wide range of application, such as oxidation stability test on oils, greases, etc, or any other test requiring high temperature control having high thermal efficiency.
Double Walled High Temperature Oil Bath is low cost options for heating- ideal tool for Laboratories, Pharmaceutical, petroleum Industries and Institutions.

SALIENT FEATURES & CONSTRUCTION OF HIGH TEMPERATURE OIL BATH

The Oil bath offered by us is basically designed to tolerate high temperatures with ease.
Inner Tank and lid made of Stainless Steel (SS-304 grade).
Outer chamber is made of Mild Steel duly powder coated.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
Heating elements are positioned in the floor and side walls & a natural mixing of the medium arises, providing better temperature distribution in the bath
Temperature range 500C to 2500C.
Operating Voltage: 220 Volts AC (50 Hz)

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF HIGH TEMPERATURE OIL BATH

Model No.	HOB 1	HOB 2	HOB 3
Internal Dimensions (L X B X D)	250 x 250 x 250mm	300 x 300 x 250mm	350 x 350 x 250mm
Approximate Capacity	15 Ltr.	22 Ltr.	32 Ltr.
Heating Load	2.5 KW	3.5 KW	4.5 KW
Temperature	Controlled by microprocessor based digital temperature indicator cum controller 1.5 KW 2.0 KW
Temperature Range	500C to 250^°C
Temperature Accuracy	± 3^°C.
Heater Protection	By Stainless Steel Perforated cover
Stirring Arrangement	By F. H. P. stirrer fitted with stainless steel shaft.
Stirring Speed	Can be regulated by speed regulator.

OPTIONAL FEATURES OF HIGH TEMPERATURE OIL BATH

Temperature control by	By profile (Micro Programmable) controller.
Timer Facility	Can be in built with Digital Electronic Timer
Communication Port	with interface and data cable to download data to your PC
