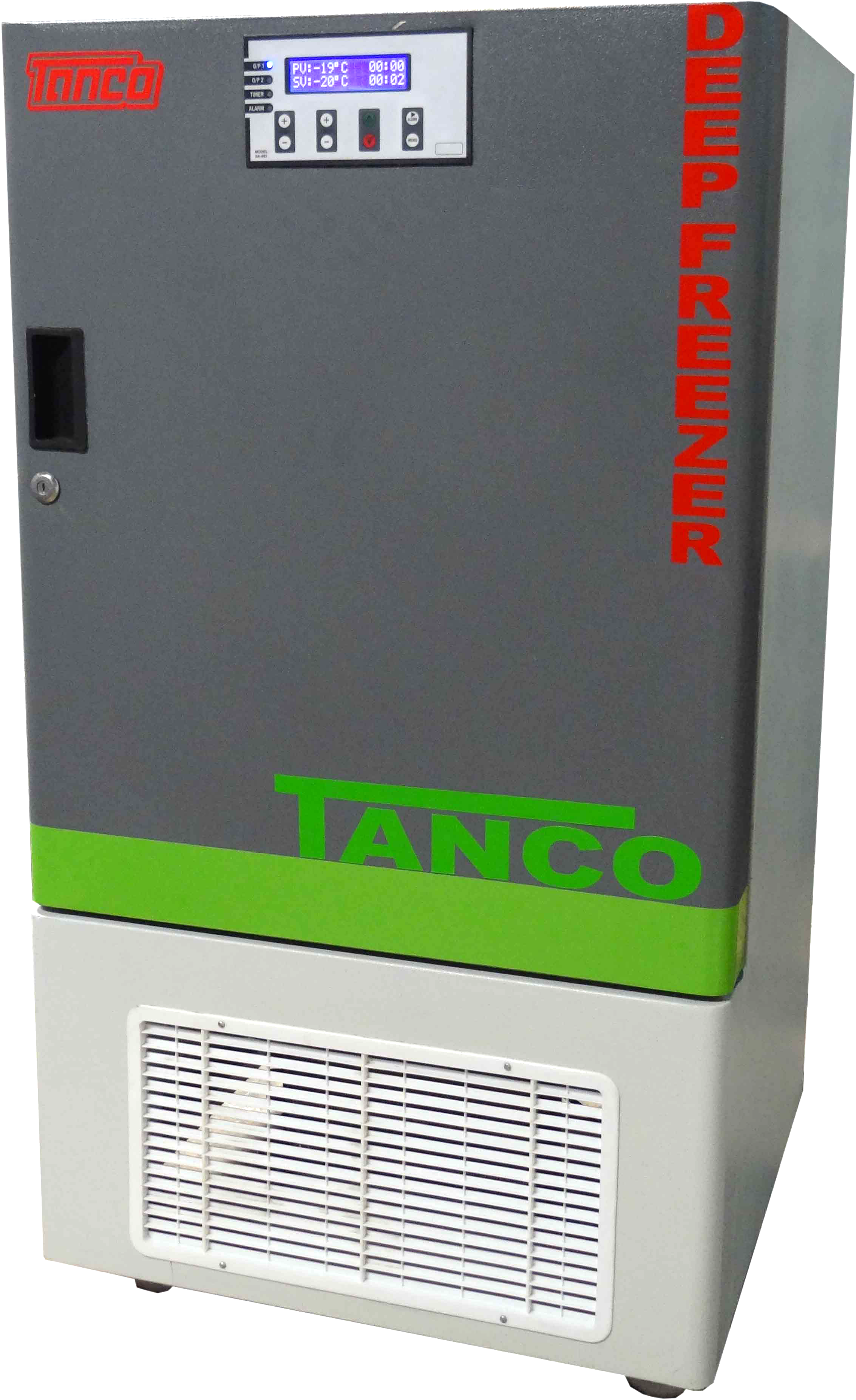

Deep Freezer Vertical (PLT-153)

APPLICATIONS OF LOW TEMPERATURE CABINET VERTICAL
  • "TANCO" brings the ultra-high-tech Microprocessor controlled, solid-state Low Temperature Cabinet (Vertical Models) with micro control and CFC free refrigeration system. to meet various standard applications in diverse industrial applications such as medical, agricultural institutions, bio-chemical industrial and research laboratories.
  • It is ideal laboratory freezer to provide a perfect freezing environment for the preservation of vaccines, blood plasma, test samples, specimens at desired temperature (Available in 3 Models i.e. -20oC, -30oo
  • Also used for preservation of red blood plasma, white blood cell, skin, bone, bacteria, semen, biomedical product in small medium and large blood centers.
  • Suitable for hospitals, drugstore, pharmaceuticals factories, sanitation and anti-epidemic stations and clinics.
DEEP FREEZER SALIENT FEATURES & CONSTRUCTION OF LOW TEMPERATURE CABINET VERTICAL
  • Robust construction Outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
  • Inner chamber made of STAINLESS STEEL SHEET (304 Grade).
  • Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
  • Door operated illumination lamp is fitted inside the chamber for easy visibility.
  • A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
  • High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
  • Direct cooling system for stable temperature control by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
  • Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature provided with Volt meter on the panel to read the incoming voltage.
  • Caster wheel mounted for easy portability.
  • Supplied with cord and plug.
  • Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF LOW TEMPERATURE CABINET VERTICAL

Vertical Model No LDF-4 LDF-6 LDF-10
Approx Volume (Ltr) 112 170 285
Capacity Cu.ft. 4 Cu.ft. 6 Cu.ft. 10 Cu.ft.
No. of Shelves 2 2 2
Chamber Size in MM 610 x 450 x 410 845 x 500 x 400 870 x 570 x 560
Temperature Available in 3 Models i.e. -20oC, -30oC, -40oC.
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Temp. Accuracy +1oC
Display: LED Display for Set Value(SV) and Process Value (PV)
Relay Solid state electronic relay with protective heat sink.
Insulation By High density PUF insulation
Operations Nearly silent operation with ultra-low vibration
High Voltage Protection Through automatic voltage stabilizer (Optional)
Electric Supply 220/230V AC, 50/60Hz zero size image

OPTIONAL FEATURES OF LOW TEMPERATURE CABINET VERTICAL

GMP models With inner chamber & outer body complete made of Stainless Steel
Temperature Alarm For High and Low Temperature Variations
Temperature Recorder By Weekly temperature recorder
Printing Facility By Built in Mini Printer to record temperature.
Controlling of Temperature By Profile Digital Microcontroller having 4 Programmers each of16 steps (total 64 steps of ramp / soak profile)
PLC Based Control Systems With Touch Screen Display with Direct Thermal / Dot Matrix Printer.
LCD Controller with Data Logger (16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.
Communication Port Communication Port with interface and data cable to download data to your PC.
Regulated Voltage By Voltage stabilizer
Others Models: Vertical Capacity: 170 ltrs/ 265 ltrs/ 425 ltrs are also available
