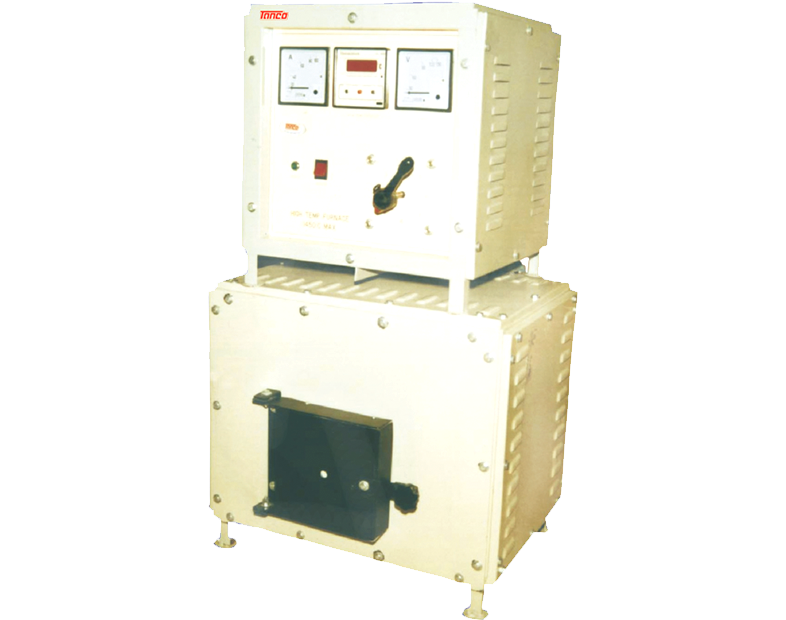

High Temperature Muffle Furnace (1500 oC) (PLT-243 A)

APPLICATIONS of Industrial Furnace
  • "TANCO" High Temperature Muffle Furnace is elegantly designed in various applications for Educational R&D labs, Chemical, Pharma, Steel Industries & Foundries & Treatment of samples under high temperature.
  • Low Cost option for heating the material on high temperature.
SALIENT FEATURES & CONSTRUCTION OF HIGH TEMPERATURE MUFFLE FURNACE
  • Floor Model Type.
  • Heating by Imported Silicon Carbide Rods.
  • Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber.
  • Easily Replaceable Carbide Rods.
  • Saves Energy upto 30%.
  • Outstanding Temperature Reliability.
  • Having large surface radiation ratio to enhance thermal efficiency and power consumption.
  • Duly controlled by Accurate step down Transformer (Air Cooled).
  • Chamber made of Ceramic Zirconium Board.
  • Fitted with heavy hinges & door is duly insulated.
  • Elements are placed horizontally in the chamber.
  • Fitted with thermocouple & silver fuse for protection of chamber.
  • Control panel fitted with Digital Temperature Indicator cum Controller upto 16000C with sensor & AMP Meters.Temperature is controlled by electronic digital temperature indicator cum controller from 100°C to 1450°C, + 50C fitted on the front panel for easy operations.
  • Temperature is displayed by Digital LED with SV and PV display at front of the Furnace (Optional).
  • Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF HIGH TEMPERATURE MUFFLE FURNACE

Model No. MFH - 1 MFH - 2 MFH - 3 MFH - 4
Inner Chamber in MM (W x H x D) 100 x 100 x 225 125 x 125 x 250 150 x 150 x 300 200 x 200 x 300
Inches Conversion 4 x 4 x 9 5 x 5 x 10 6 x 6 x 12 8 x 8 x 12
Rating in KW 2.5 4.0 5.0 7.0
Temperature Range Maximum Temperature is 1600°C and working temp. 1450°C
Heating By Silicon Carbide Rods
Temp. Controller Duly controlled by Accurate step down Transformer (Air Cooled)
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller (Optional)
Temp. Sensitivity ±50C by digital electronic controller
Voltage Operating Voltage: 220 Volts AC (50 Hz)

OPTIONAL FEATURES OF HIGH TEMPERATURE MUFFLE FURNACE

Controlling of Temperature By Profile (Micro Programmable Controller)
