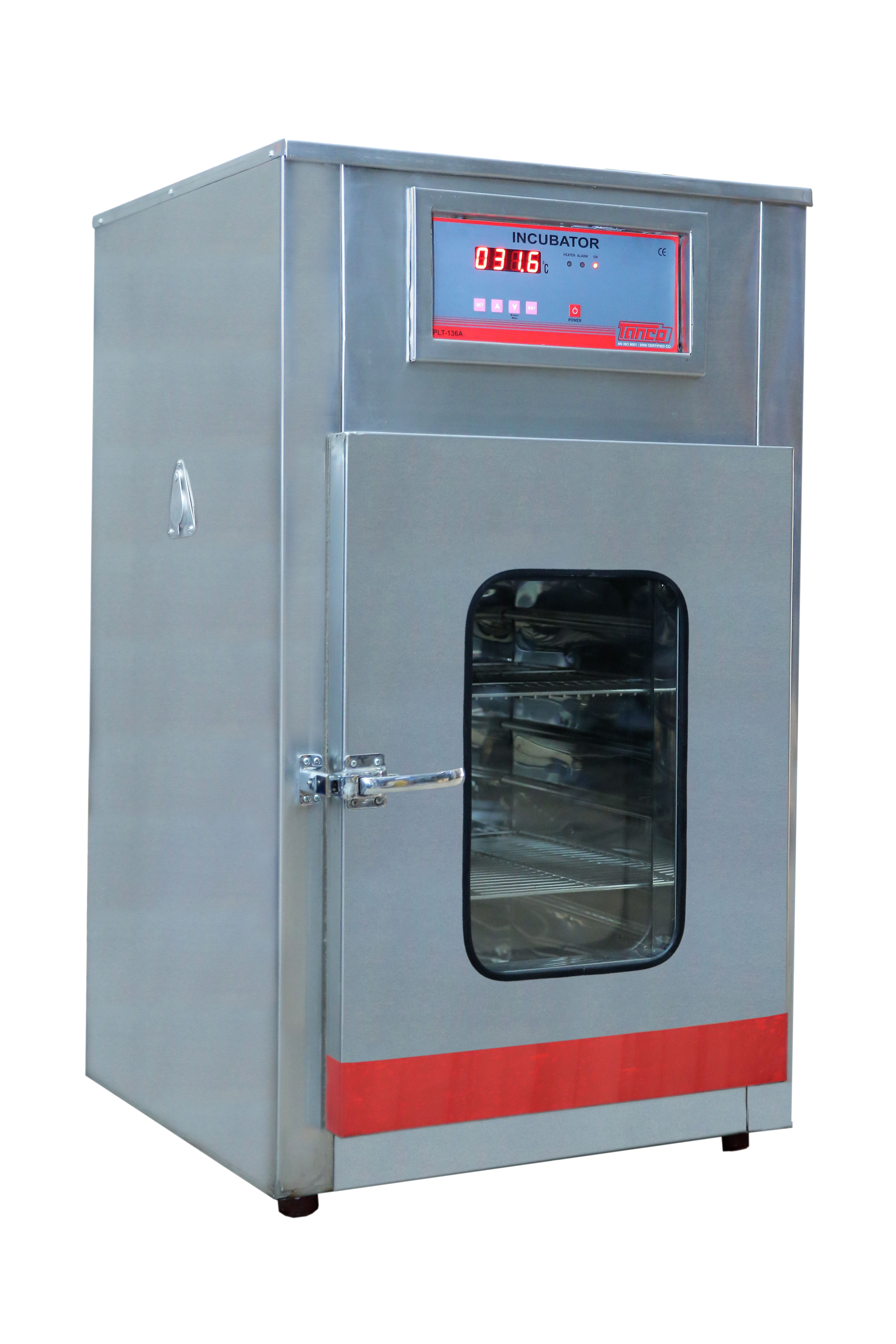

Incubator Bacteriological GMP Model (PLT-136 B)

APPLICATIONS OF BACTERIOLOGICAL INCUBATOR GMP
  • Bacteriological Incubator (Memmert Type) Double walled is elegantly designed in various applications for microbiology, cell cultivation of animals and plants, food studies. Our Incubators stands for unparallel precise, even and gentle temperature control.
  • Double Walled Incubators (Memmert Type) is low cost options for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research used for Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and Incubation of hydroxyl steroids.
SALIENT FEATURES & CONSTRUCTION OF BACTERIOLOGICAL INCUBATOR GMP
  • Outer Body & Inner chamber Complete made of Stainless Steel.
  • Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
  • Door has double viewing window to observe the sample placed inside the chamber without disturbing the thermal condition.
  • Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
  • Door Gasket fixed on the double walled door for proper sealing.
  • Fitted with heavy hinges with a ball catcher, spring loaded door closing device. Door is duly insulated.
  • Adjustable two ventilation slides control inner air / vapour circulation.
  • Beaded heating elements made of high quality Nichrome/Kanthal wire are placed in ribs, at bottom and sides for uniform heat distribution.
  • Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
  • Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to100°C ± 1°C. fitted on the front panel for easy operations.
  • Different programme functions can be designed for a wide variety of applications, and even when used
  • Temperature is displayed by Digital LED with SV and PV display at front of the oven.
  • Front Panel is provided with ON/OFF switch, temperature controller and indicators
  • Supplied with cord and plug.
  • Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF BACTERIOLOGICAL INCUBATOR GMP

Model No. ING 1 ING 2 ING 3 ING 4 ING 5 ING 6 ING 7 ING 8
Inner Chamber in MM (W x H x D) 300x300x300 355x355x355 455x455x455 455x605x455 455 x 605 x 605 605x605x605 605x910x455 605x910x605
Inches Conversion 12 x 12 x 12 14 x 14 x 14 18 x 18 x 18 18 x 24x 18 18 x 24 x 24 24 x 24 x 24 24 x 36 x 18 24 x 36 x 24
Capacity 28 ltrs 43 ltrs 90 ltrs 105 ltrs 120 ltr 215 ltrs 240 ltrs 325 ltrs
Heating Load 0.50 KW 0.50 KW 1.00 KW 1.00 KW 1.50 KW 1. 50 KW 1.50 KW 2.00 KW
No. of Shelves 2 2 2 2 2 2 3 3
Temperature Range 5°C above ambient to 70°C
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Temp. Sensitivity +1°C.
Air Circulation By forced convection system
Relay Solid state electronic relay with protective heat sink.
Auto Tuning System System is compatible with auto tuning system

OPTIONAL FEATURES OF BACTERIOLOGICAL INCUBATOR GMP

Controlling of Temperature By Profile (Micro Programmable Controller)
Audio Alarm System Activates at end of cycle Buzzer.
Timer Facility Can be in built with Digital Electronic Timer
Communication Port RS - 485 with Window based software
PLC Based Control Systems With Touch Screen Display with Direct Thermal / Dot Matrix Printer.
LCD Controller with Data Logger 16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.
